WHEEL ADAPTER BIG 5X8 TO 10 BUD(1 only)WHEEL ADAPTER BIG 5X8 TO 10 BUD(1 only)WHEEL ADAPTER BIG 5X8 TO 10 BUD(1 only)
Actual product my vary from image(s)

WHEEL ADAPTER BIG 5X8 TO 10 BUD(1 only)

Category: Adapters
Model #: BIG5TO10BUD(1)
Retail Price: $500.00
Our Price: $400.00
You Save $100.00 (20%)
Quantity:

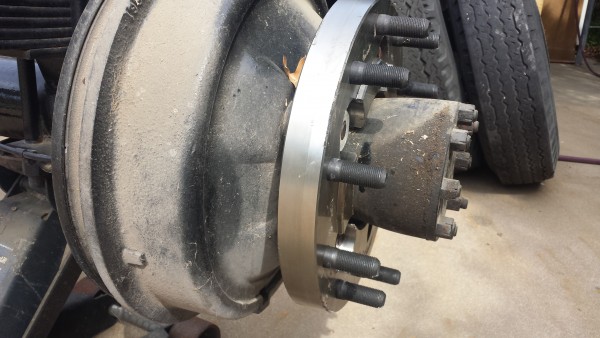

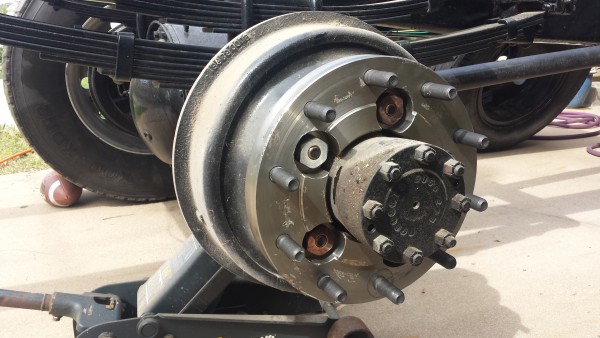

Precision CNC machine wheel adapter to adapt modern 10 x 11.25 bud wheels to the older Big 5 x 8.00 hubs.

CNC machined from 1-3/4 in A572 GR50(50ksi) PLT, includes 8.762 dia x 1/4 in hubcentric boss for single Budd wheel, adds 1-1/2 in offset. ID is 5.875 for hubcentric on the Big 5. Does not include 10 pcs p/n r005997 wheel studs, installation, and/or 10 pcs p/n r006000 lug nuts. Additionally does not include coating/painting/treatment for rust preventetive. If dual wheels are required, either a custom made adapter with total of 3/4 in hubcentric boss, special lug nuts with 1-3/16" dia. locator, or 1-3/16 in o.d. x 3/4 in i.d. x 3/4 in long lug bushings for lug centic (or in some cases ball seat lug nuts may work) will be required for dual wheel installation. will work best using 3/4-16 front wheel ball seat lug nuts for the big 5 side(euclid p/n 5625, not included). Price for each adapter only.







http://truckhub.us/yahoo_site_admin/assets/docs/Euclid100DWheelAttachingPartsX-Ref.96161249.pdf
